POWER RATING:
2007
93 Octane, 3rd gear, Mustang Dyno:
Current Mods
10psi Wastegate = 256 RWHP & 211 RWTQ
18psi Low Boost = 290 RWHP & 257 RWTQ
21psi High Boost = 335 RWHP & ??? RWTQ (bad RPM pickup, TQ didn’t register)
2004
93 Octane, 4th gear, Dynojet:
Current Mods Without Fuel, IM & EMS
10psi Wastegate = 197 RWHP & 168 RWTQ
16psi High Boost = 283 RWHP & 244 RWTQ
2001
93 Octane, 4th gear, Dynojet:
CT26, TEP DP, RMS Intake, MBC, ATS TB, GReddy IC & SP Exhaust
15psi MBC Setting = 183 RWHP & 214 RWTQ
Stock
11 psi = 150-160 RWHP
INTAKE / TURBO / EXHAUST:
Gizmo Thermal Phenolic Intake Manifold Gasket - 4MM Thick
GReddy TDO6SH-20G Turbo w/CJ Motorsports Stage 2 External Wastegate Modification
GReddy Oil Catch Can 15 MM
HKS Super Sequential Blow-Off Valve Kit
Kbox Engineering Gen3 Throttle Body Gasket
KORacing 3in Air Intake Pipe W/Filter
NGK6097 Spark Plugs
Phoenix Power SPL (aka Garage Fuki) Departure II 85MM Pro Racing Exhaust
Ross Machine Racing Generation 2 Intake Manifold w/Generation 3 Center Mount Throttle Body & Spacer
Shem's Garage Polished EGR Block-off Plates
Speed Source GReddy TD06 Turbo Replacement Oil Drain Pipe
Tial 35MM Wastegate w/CJ Motorsports Stainless Steel Dump Tube
Toyota Generation 3 Throttle Body (Gen3 60MM VS Gen2 55MM)
Twos-R-Us Valve Cover Allen Key Bolts
FUEL:
Aeromotive 13109 Fuel Pressure Regulator
Delphi 84 lb/hr (871 cc/min) Low Impedence Injectors
Walbro 255LPH High Pressure Intank Fuel Pump
Wolfkatz MR2 Basic Fuel Fitting Kit & Mounting Plate for Aeromotive 13109 FPR
Wolkfatz Fuel System: Top Feed Fuel Rail
COOLING:
Castrol Syntec 5W-30 Full Synthetic Engine Oil (The ONLY Oil I've Used Since '95)
Ceramic Coated: Heat Shields, Manifold, TD06 (DP, Adaptor & Exhaust Housing), IC pipes, Valve Cover, Brackets, Exhaust (B-pipe & Center Y-pipe)
EMS Powered Polished Fuse Box Covers (Front & Rear)

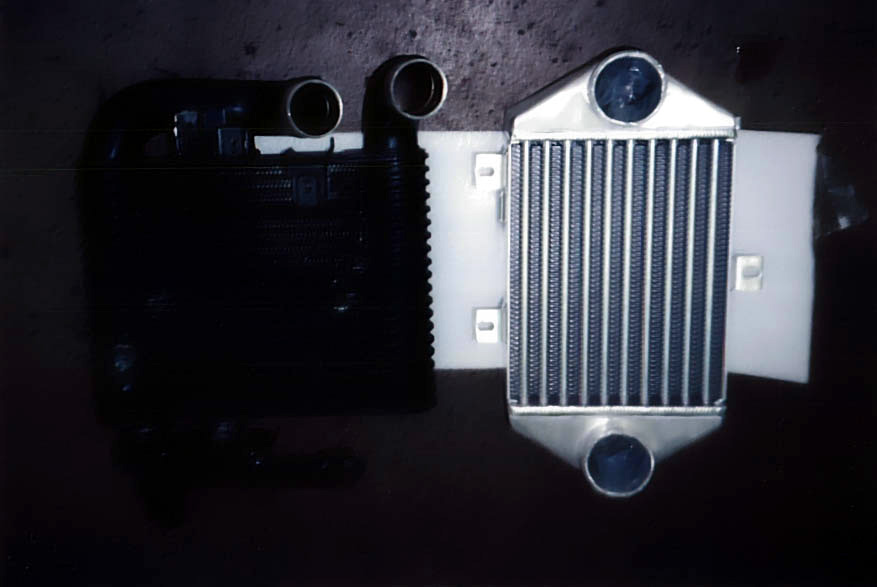

GReddy Intercooler (192 x 250 x 119mm)
KORacing Mirror Polished Engine Lid Fan Shroud w/Dual Spal 11in Pusher Fans (Controlled By 2nd Fog Light Switch)
KORacing Gas Charged Engine Prop Rod
Spal 7.5in Puller Fan Mounted On IC (Controlled By 2nd Fog Light Switch)
Toyota Racing Developent 21.3psi (1.5kg) Radiator Cap
Toyota Racing Development Oil Cap
Turbo Hoses: GReddy Intercooler Hose Upgrade Kit & Throttle Body Transition Hose in Red
Twos-R-Us Aluminum GReddy Intercooler Shroud
SUSPENSION:
Cusco OS Rear Strut Bar
Cusco Mounts Powdercoated Black
H&R Lowering Springs
Koni Sport Adjustable Struts
High & Tight Motorsports Sway Bar End Links Set
Suspension Techniques Anti Sway Bar Set
Toyota Crash Bolts (Corrected Rear Camber)
Toyota Racing Development 4 Piece Pillow Upper Ball Mounts
Toyota Racing Development 14 Piece Suspension Bushing Set
Toyota Racing Development 4 Piece Engine Mount Set
Toyota Boot/Bump Kit (2nd set)
DRIVETRAIN:
Clutch Masters FX300 Carbon/Kevlar Stage 3 Clutch
CRW Clutch Roller Bearing (replaces square bushing on bell crank)
CRW Shifter Cable Spherical Bearings
CRW Heavy Duty Axle Upgrade Inner Cages
Redline 75W/90NS Full Synthetic Transmission Fluid (Good) Changed To Redline MT90 (Great)
Speed Source Extended Clutch Slave Cylinder Pushrod
Superklasse C's/TRD Hybrid Short Stroke Shifter, Drop Plate, Base Bushings & Shifter Cup Bushing
Toyota Generation 3 Viscous LSD Transmission (35K on trans in '02)
Toyota Racing Development Short Shift Kit
WHEELS / TIRES / BRAKES:
Bedell Racing SW20 Master Cylinder Brace
Kumho Ecsta PS31 Ultra High Performance Summer Tires: 215/40/17 Front & 245/40/17 Rear
Earl's Hyperfirm Stainless Steel Brake Line Kit
Gorilla Automotive Black Lug Nuts
Porterfield RF-S Carbon Kevlar Brake Pads - Full Set
SSR SP1 3 Piece Wheels in Black: 17x7 +37 NR Face & 17X9 +37 SL Face
SSR Carbon Fiber Center Caps
Valvoline Synpower Synthetic Brake Fluid
Wagner Cross Drilled & Slotted Brake Rotors
ELECTRONICS:
AEM Engine Management System (EMS)
Tuned by Vince "Talent" Fiore of Sound Performance Racing
AEM UEGO Wideband Controller Air Fuel Ratio Gauge
Autometer Dual Pillar Gauge Pod
Autometer Sport Comp 2 1/16in: 30psi Boost/30psi Vacuum, Oil Pressure, Volt & Oil Temperature Gauge
Custom 3 Gauge Center Din Panel
GM Sensors: 3bar MAP & IAT
GReddy Profec B-Spec Electronic Boost Controller
Hella H6054 Halogen Headlight Conversion
Scremin Engineering EMS Mounting Bracket
Super Bright LED's for Interior Maps & Trunk
Toyota Fog Light Switch (Controls IC & Engine Lid Fans)
Toyota JDM Premium Horns
SOUND SYSTEM:
Alpine CDA7863 In-dash CD Player
Biurlink Alpine Bluetooth Adapter
Shawn M Enclosures w/JL Audio 8W3-D6 Subwoofers
MTX Thunder 280 Amplifier
Phoenix Gold SS212 Speaker Cable
Street Wires PowerStream 8G, 30amp Power Cable
EXTERIOR:
GReddy Body Kit: Front Lip, Side & Rear Skirts
Kbox Engineering: 97+ Rear Spoiler Pads
Kbox Engineering: Eccentric T-top Shaft Guides
Paint: OEM Factory Respray of Crimson Red w/Clear Coat, Monochrome Scheme
Shaved: Front License Plate, Side View Mirrors & Emblems
Toyota Generation 3 Antenna Assembly
Toyota Generation 3 Complete Taillight Assembly
Toyota Generation 4 Clear Lamp & Cover Assembly = Clear Corner Lenses
Toyota Generation 4 Solid Front Trim Molding
Toyota Generation 4 Rear Amber Corner Lenses
Toyota Generation 5 3-way Adjustable Rear Wing
Toyota Generation 5 Trunk Lid
Toyota Rear 1/25 Window Glass, Rear Louvers & Window Moulding Assemblies
Welded: 3 Holes On Each Rear Quarter Panel From Generation 2 Wing
INTERIOR:
Classic Soft Trim Custom Leather Interior Upgrade Package w/2-tone: Seats, Head Rests & Door Panels - All Red Leather Is Perforated
MR2 Heaven Seat Belt Restore in Red Stripe
MR2 Heaven Purple K Fire Extinguisher, Mount & Seat Bracket
MR2 Heaven Halo Shifter Type 3, Brushed Alum with Undermount Ring
Toyota Air Bag Connector Harness Adapter
Toyota Aluminum Gas, Brake & Clutch Pedals
Toyota Generation 5 3-Spoke Steering Wheel w/Red Stitching & SRS Airbag
Toyota Generation 5 Cruise Control Stalk
Toyota Generation 5 Door Sills & Stainless-Steel Inserts
Toyota Generation 5 Red Stitch Shift Knob
Toyota Generation 5 Trunk Mat
NEW MODS WAITING TO BE INSTALLED:
Eddy's LHD Fiberglass 52MM Triple Gauge A-Pillar Pod, Black
OLD MODS UNINSTALLED & SOLD:
ATS Throttle Body Inlet Pipe
Dommenator Aluminum Shift Surround & Red Stitch Shift Boot
GReddy SP Exhaust
HKS Fuel Cut Defenser
KYB AGX 5-Way Adjustable Struts
Konig Monsoon Wheels: 17X7 Front & 17X8 Rear +40 Offset
Momo: Anatomic Shift Knob and Shift Boot
Rebel Motor Sports Ram Air Intake
Spal 7.5in Pusher Fan Mounted On Engine Lid (Controlled By Stock Engine Lid Thermostat)
SSR Plastic Center Caps
Top End Performance Custom Down Pipe w/3Wire O2 Sensor, replaced w/Bosch 4Wire 02 Sensor
Toyota Generation 3 Complete Front Lip Spoiler
Toyota Generation 5 Speed Flaps
Toyota Generation 2 CT26 Turbo, DP, IM & IC
Twos-R-US MBC
Yokohama AVS ES100 Tires: 215/40/17 Front & 245/40/17 Rear
THANKS:
I want to give "MAJOR BIG-TIME KUDOS" to my brother Rob for putting up with all of my never ending "...what if we did this to my MR2?!?..." questions and you gotta love my "...guess what I got in the mail today??!..." statements that I'm sure just make him cringe!! Seriously though, without all of his help, advice (no matter if I wanted it or not), the use of his shop & tools (practically giving me my own bay), his connections and A LOT of his time, my MR2 wouldn't be in the great mechanical condition she's in today. THANKS BRO....I LOVE YOU MAN!!!!!
|
